CSx stands for Cross Sections from Excel. This is CAD based Road Design Software to generate Road Cross Sections, L Sections, Plan, Quantity Statements, Area Calculation Table etc...

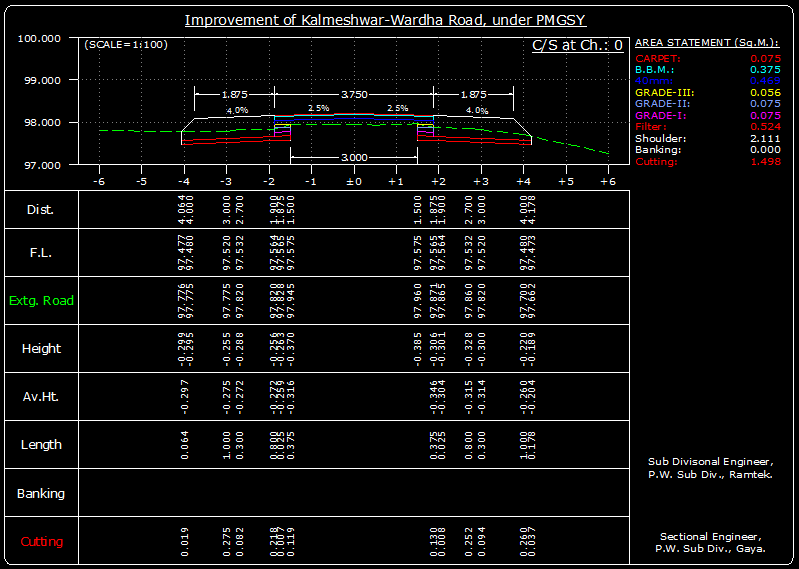

Draw different type of Road Cross Sections by CSx software:

• Earth Work
• Both Side Widening
• One Side Widening
• Box Cutting
• New Road
• PCC Work
• With Drains
• Etc...

Draw multy layer cross sections.

Group multy cross sections in a single page.

Automatic ploting of all cross sections, in a single command.

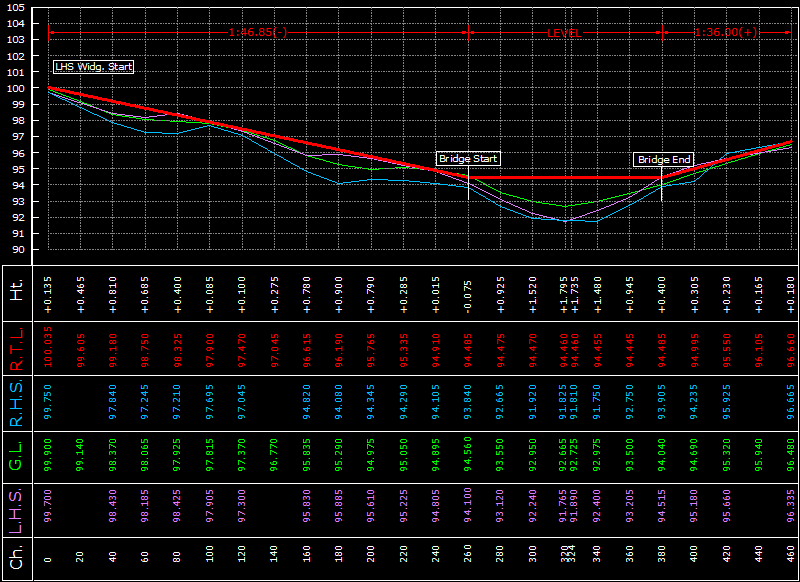

Draw L Sections with any number of profiles.

Draw Levels and Slopes of existing profile in L Section.

Transfer these levels to Excel file.

Update L Section profile in given Slopes.

Split large L Section in many small L Sections in given length to take print outs in A4 size papers.

Draw Road Plan as per given bearings, tree, house positions.

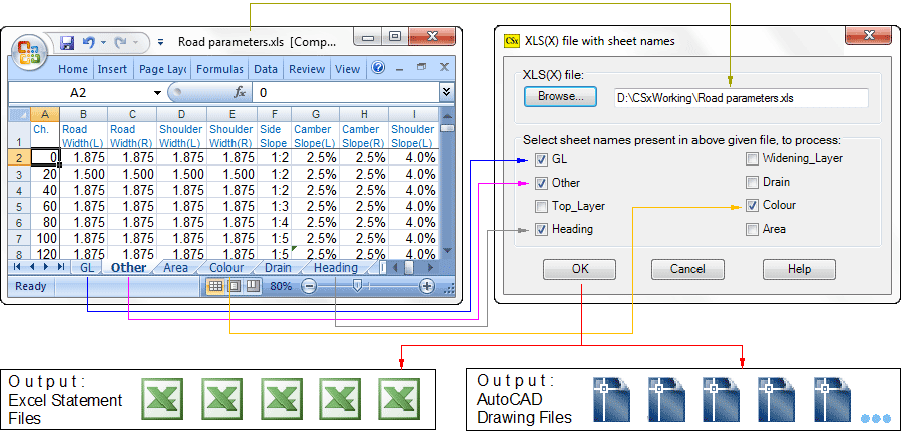

• Data Input in Excel, in any non 'CSx' computer.
• Different type of Road Cross Sections in AutoCAD:
  Earthwork, Widening, New Road, Box Cutting, PCC etc...
• Data Outputs or Statements in XLS format.
• Data Transfer from drawing to Excel.
• Multiple L Sections from large L Section, for ploting.
• Automatic Ploting of all cross sections.
• Find Slope, Height and Levels from L Section.
• Find earth work Quantity from L section.
• Road Plan.

• Some Excel Skill is sufficient to operate CSx Software. (PDF ›››)
• Good Quality Drawings in AutoCAD.
• No complicated Windows forms, because whole data and configurations are stored in a single XLS file.
• Enter GL land survey data in various Formats.
• Check all Levels Quickly.
• CSx is easy to operate.
